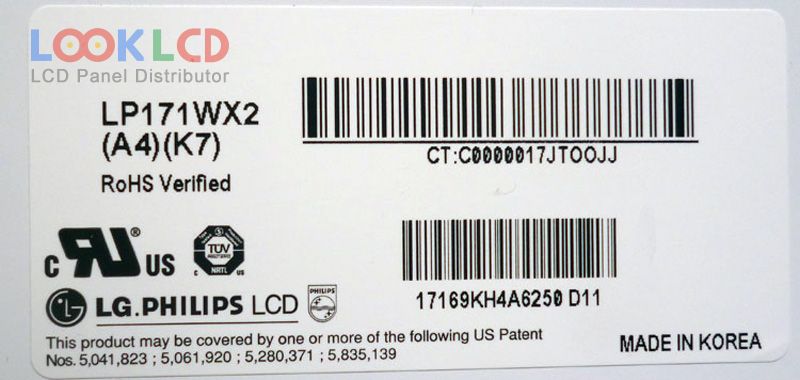

| Número de pieza | LP171WX2-A4K7 |
| Marca | LG Display |
| Tamaño | 17.1 |
| Solicitud | NBPC |
| Resolución | 1440×900 |
| Composición | LCM |
| Brillo | 200 |
| CR | 350:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | LG.Philips LCD |
| modelo de panel | LP171WX2-A4K7 3 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 17.1 inch |
| resolución | 1440(RGB)×900 , WXGA+ |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 367.2×229.5 mm |
| describir | 382.2×244.5×6.5 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superficie | Glare (Haze 0%), Hard coating (2H), Antireflection |
| brillo | 200 cd/m² (Typ.) |
| relación de contraste | 350:1 (Min.) |
| mostrar colores | 262K (6-bit), CIE193145% |
| tiempo de respuesta | 6/19 (Typ.)(Tr/Td) |
| ángulo de visión | 65/65/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |

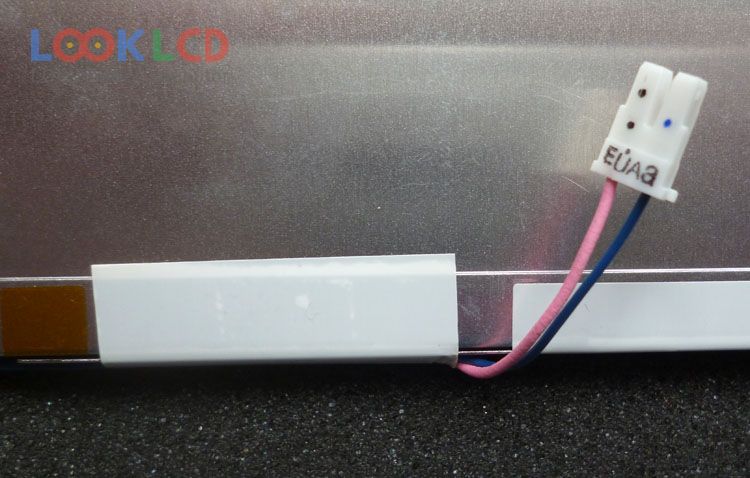

| tipo de lámpara | 1 pcsCCFLWithout Driver |

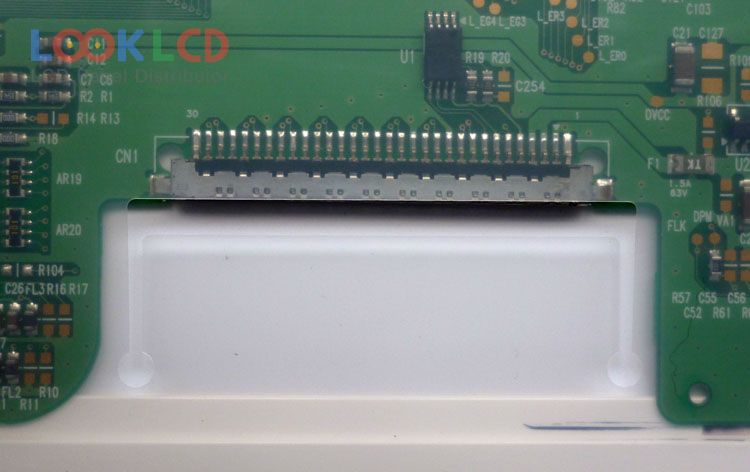

| interfaz de señal | LVDS (2 ch, 6-bit), 30 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
