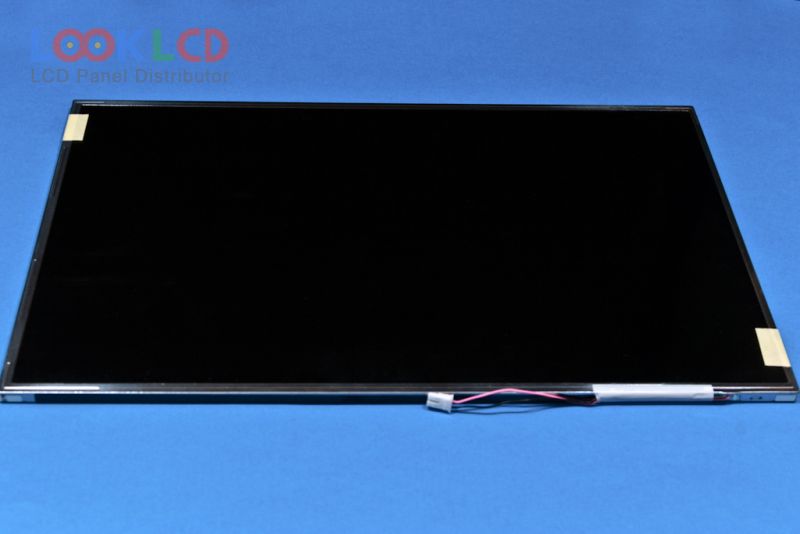

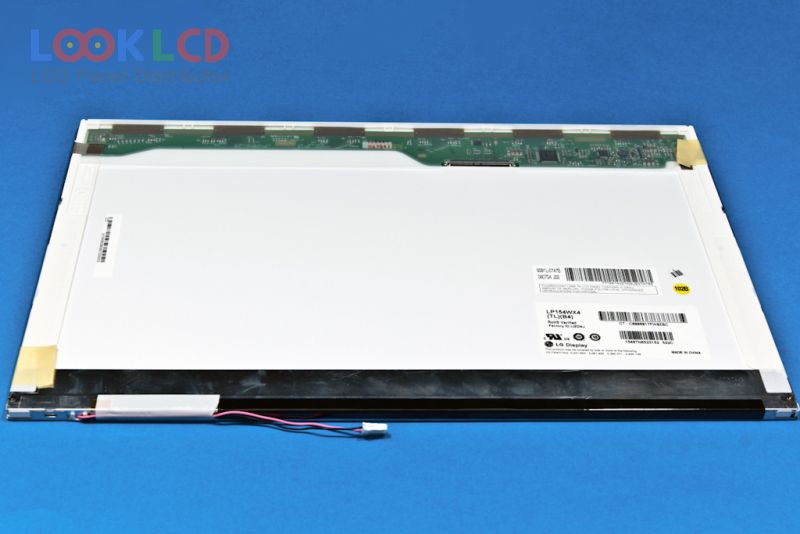

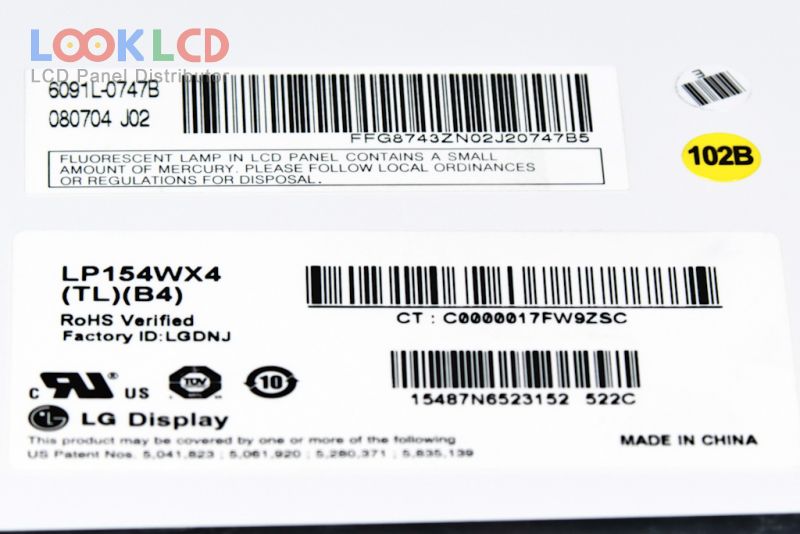

| Número de pieza | LP154WX4-TLB4 |
| Marca | LG Display |
| Tamaño | 15.4 |
| Solicitud | NBPC |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 220 |
| CR | 400:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | LG.Philips LCD |
| modelo de panel | LP154WX4-TLB4 20 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 15.4 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 331.2×207 mm |
| describir | 344×222×6.5 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superficie | Glare (Haze 0%), Hard coating (3H) |
| brillo | 220 cd/m² (Typ.) |
| relación de contraste | 400:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193145% |
| tiempo de respuesta | 8 (Typ.)(Tr+Td) |
| ángulo de visión | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 1 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (1 ch, 6-bit), 30 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
