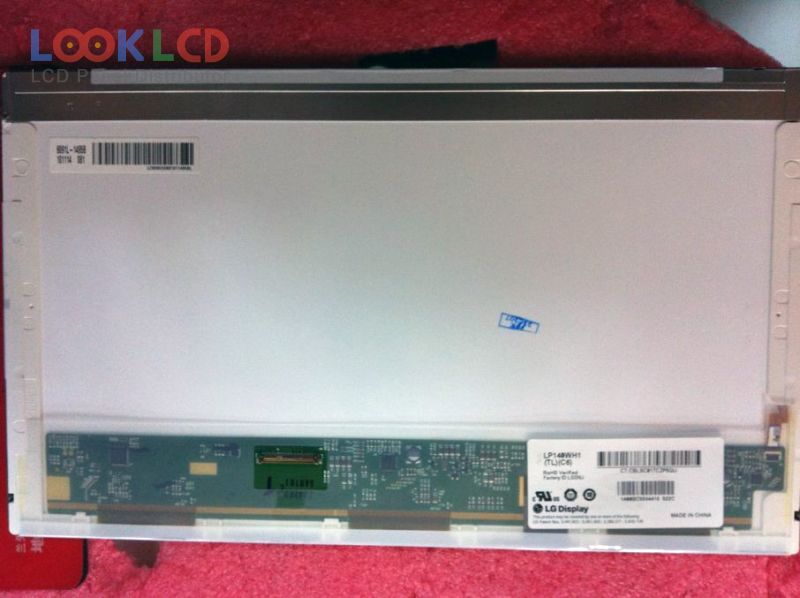

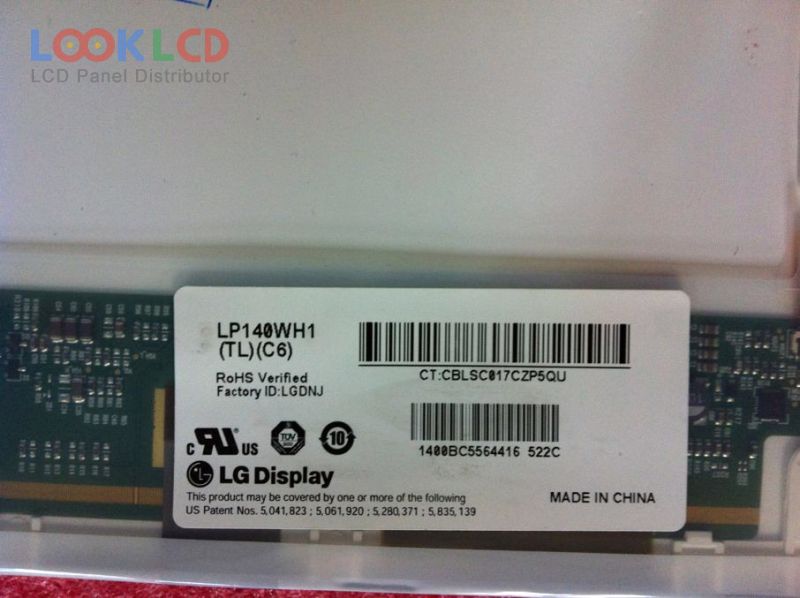

| Número de pieza | LP140WH1-TLC6 |
| Marca | LG Display |
| Tamaño | 14.0 |
| Solicitud | NBPC |
| Resolución | 1366×768 |
| Composición | LCM |
| Brillo | 200 |
| CR | 500:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | LG Display |
| modelo de panel | LP140WH1-TLC6 30 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 14.0 inch |
| resolución | 1366(RGB)×768 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 309.399×173.952 mm |
| describir | 323.5×192×5.2 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superficie | Glare (Haze 0%), Hard coating (3H) |
| brillo | 200 cd/m² (Typ.) |
| relación de contraste | 500:1 (Min.) |
| mostrar colores | 262K (6-bit), CIE193145% |
| tiempo de respuesta | 16 (Typ.)(Tr+Td) |
| ángulo de visión | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
