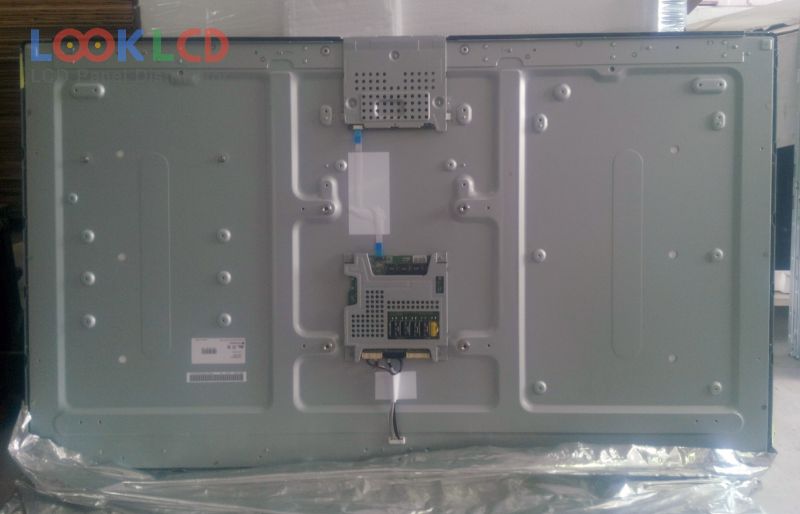

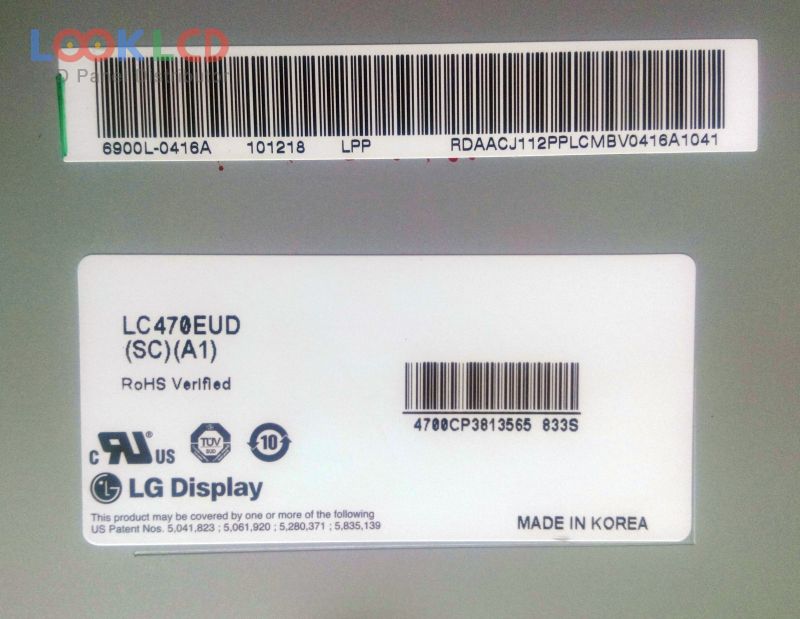

| Número de pieza | LC470EUD-SCA1 |
| Marca | LG Display |
| Tamaño | 47 |
| Solicitud | LCTV |
| Resolución | 1920×1080 |
| Composición | LCM |
| Brillo | 450 |
| CR | 1400:1 |
| Colores | 16.7M/1.06B |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | LG Display |
| modelo de panel | LC470EUD-SCA1 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 47 inch |
| resolución | 1920(RGB)×1080 , FHD |
| modo de visualización | S-IPS, Normally Black, Transmissive |
| área activa | 1039.68×584.82 mm |
| describir | 1083.6×628.8 mm |
| superficie | Antiglare (Haze 10%), Hard coating (3H) |
| brillo | 450 cd/m² (Typ.) |
| relación de contraste | 1400:1 (Typ.) |
| mostrar colores | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| tiempo de respuesta | 5 (Typ.)(G to G); 8 (Typ.)(MPRT) |
| ángulo de visión | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 120Hz+120Hz |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (4 ch, 8/10-bit), 92 pins |
| voltaje de entrada | 12.0V (Typ.) |
| solicitud | LCTV |
