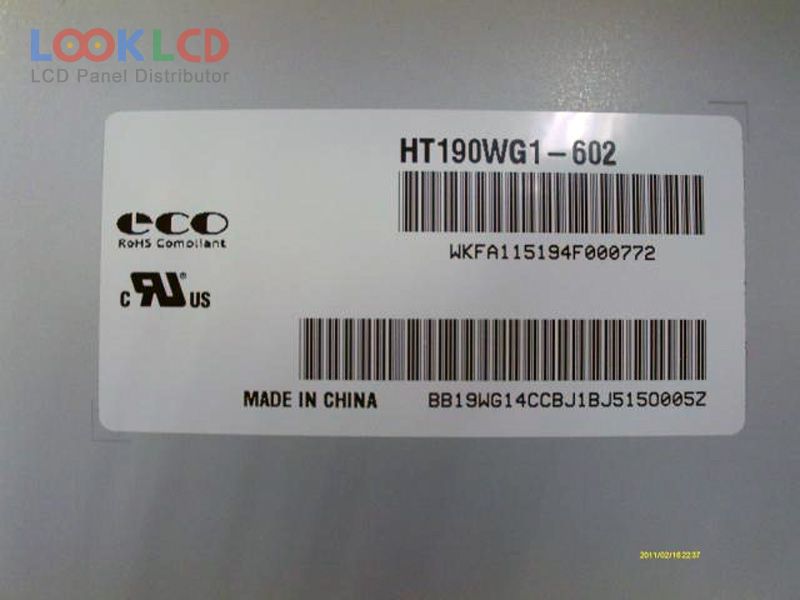

| Número de pieza | HT190WG1-602 |
| Marca | BOE |
| Tamaño | 19.0 |
| Solicitud | DMPC |
| Resolución | 1440×900 |
| Composición | LCM |
| Brillo | 300 |
| CR | 1000:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | BOE |
| modelo de panel | HT190WG1-602 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 19.0 inch |
| resolución | 1440(RGB)×900 , WXGA+ |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 408.24×255.15 mm |
| describir | 428×278×17.5 mm |
| superficie | Antiglare (Haze 25%), Hard coating (3H) |
| brillo | 300 cd/m² (Typ.) |
| relación de contraste | 1000:1 (Typ.) |
| mostrar colores | 16.7M (6-bit + Hi-FRC) |
| tiempo de respuesta | 1.5/3.5 (Typ.)(Tr/Td) |
| ángulo de visión | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lámpara | 4 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (2 ch, 8-bit), 30 pins |
| voltaje de entrada | 5.0V (Typ.) |
| solicitud | DMPC |
| AA190EA01 | Mitsubishi | 19.0 | 1280×1024 |
| HSD190MEN6-A01 | HannStar | 19.0 | 1280×1024 |
| HT190WG1-100 | BOE | 19.0 | 1440×900 |
| HT190WG1-600 | BOE | 19.0 | 1440×900 |
| HT190WG1-602 | BOE | 19.0 | 1440×900 |
| HT190WG3-100 | BOE | 19.0 | 1440×900 |
| HT190WG3-101 | BOE | 19.0 | 1440×900 |
| HT190WG3-500 | BOE | 19.0 | 1440×900 |
| M190A1-L02 | Innolux | 19.0 | 1440×900 |
| MV190E0M-N10 | BOE | 19.0 | 1280×1024 |
| HSD170MGW1-B01 | HannStar | 17.0 | 1440×900 |
| HSD190ME13-D10 | HannStar | 19.0 | 1280×1024 |
| LM230WF5-TLB1 | LG Display | 23.0 | 1920×1080 |
| LM240WU5-SLA4 | LG Display | 24.0 | 1920×1200 |
| LTM185AT01 | Samsung | 18.5 | 1366×768 |
| M200O1-L02 | Innolux | 20.0 | 1600×900 |
| M215H1-L02 | Innolux | 21.5 | 1920×1080 |
| M236H1-L01 | Innolux | 23.6 | 1920×1080 |
| M270HGE-L10 | Innolux | 27.0 | 1920×1080 |
| TMS190WX1-05TB | Tianma | 19.0 | 1440×900 |
