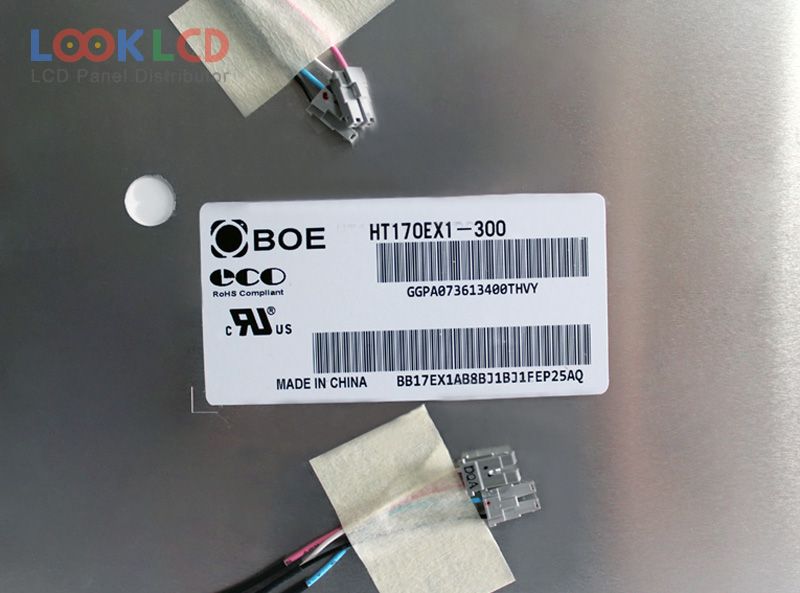

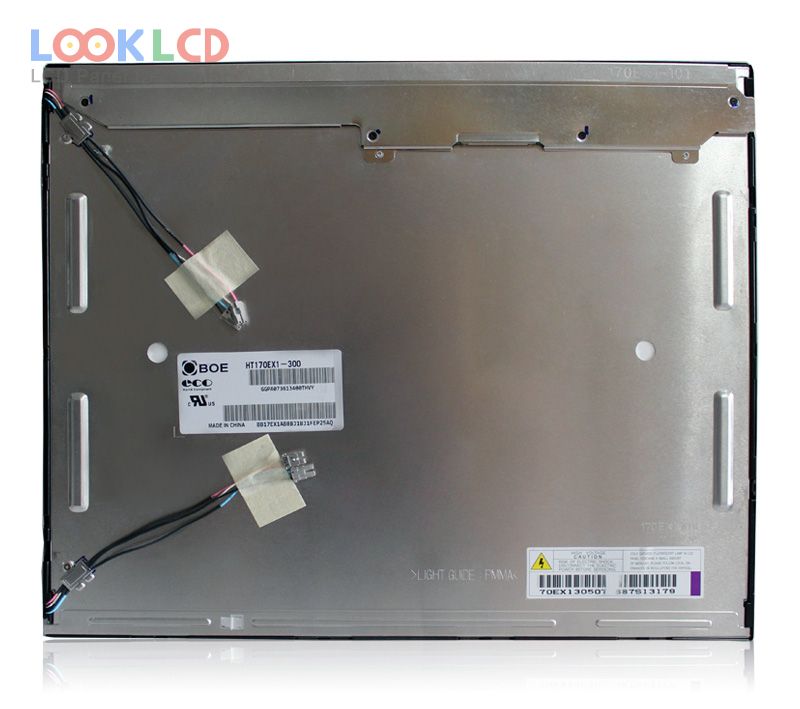

| Número de pieza | HT170EX1-300 |
| Marca | BOE |
| Tamaño | 17.0 |
| Solicitud | DMPC |
| Resolución | 1280×1024 |
| Composición | LCM |
| Brillo | 300 |
| CR | 800:1 |
| Colores | 16.2M |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | BOE |
| modelo de panel | HT170EX1-300 3 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 17.0 inch |
| resolución | 1280(RGB)×1024 , SXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 337.92×270.336 mm |
| describir | 354.9×290.3×13.5 mm |
| superficie | Antiglare (Haze 25%), Hard coating (3H) |
| brillo | 300 cd/m² (Typ.) |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 16.2M (6-bit + FRC) |
| tiempo de respuesta | 1.5/3.5 (Typ.)(Tr/Td) |
| ángulo de visión | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 4 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (2 ch, 8-bit), 30 pins |
| voltaje de entrada | 5.0V (Typ.) |
| solicitud | DMPC |
| CLAA170EA07 | CPT | 17.0 | 1280×1024 |
| HT170E01-300 | BOE | 17.0 | 1280×1024 |
| HT170E02-100 | BOE | 17.0 | 1280×1024 |
| HT170EX1-101 | BOE | 17.0 | 1280×1024 |
| HT170EX1-300 | BOE | 17.0 | 1280×1024 |
| LM170E03-TLJ6 | LG Display | 17.0 | 1280×1024 |
| LQ170K1LW02 | SHARP | 17.0 | 1280×768 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| M170EG01 VA | AUO | 17.0 | 1280×1024 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
| HT15X15-D01 | HYDIS | 15.0 | 1024×768 |
| HT190WG1-600 | BOE | 19.0 | 1440×900 |
| LM201U04-SL03 | LG Display | 20.1 | 1600×1200 |
| LM240WU8-SLD2 | LG Display | 24.0 | 1920×1200 |
| LM270WF7-SSA1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SLC1 | LG Display | 27.0 | 2560×1440 |
| LTM170E8-L21 | Samsung | 17.0 | 1280×1024 |
| M190PP01 V0 | AUO | 19.0 | 1440×900 |
| M270HVN02.1 | AUO | 27.0 | 1920×1080 |
| MV215FHM-N30 | BOE | 21.5 | 1920×1080 |
