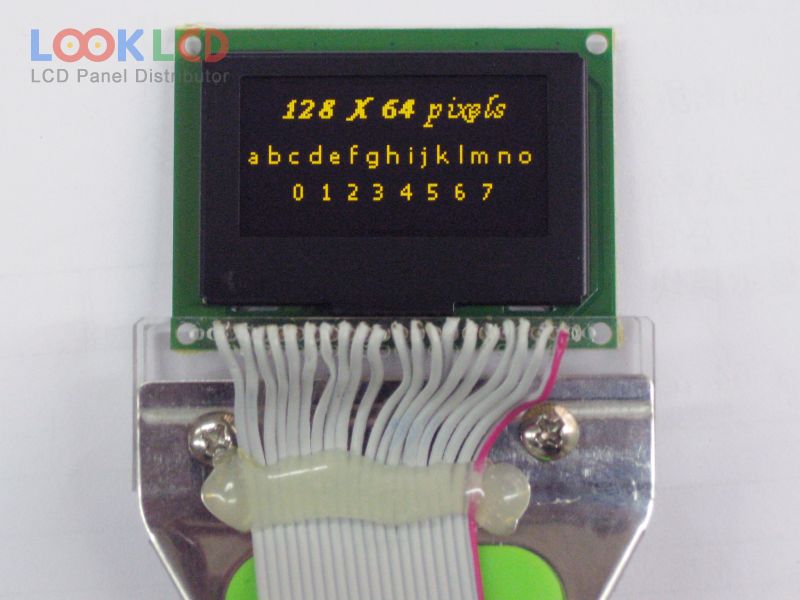

| Número de pieza | HGS128647-Y-EH-LV |
| Marca | Other |
| Tamaño | 1.54 |
| Solicitud | IA |
| Resolución | 128×64 |
| Composición | OLED |
| Brillo | 150 |
| CR | 2000:1 |
| Colores | Mono(Yellow) |
| Iluminar desde el fondo | self |
| Interfaz | CPU/SPI/I²C |
| marca de paneles | TSINGTEK |
| modelo de panel | HGS128647-Y-EH-LV |
| tipo de panel | PM-OLED , OLED |
| Tamaño del panel | 1.54 inch |
| resolución | 128×64 |
| área activa | 35.056×17.52 mm |
| describir | 54×39.5×8.5 mm |
| superficie | |
| brillo | 150 cd/m² (Typ.) |
| relación de contraste | 2000 : 1 (Min.) |
| mostrar colores | Mono(Yellow) |
| ángulo de visión | 80/80/80/80 (Min.)(L/R/U/D) |
| controlador ic | Built-in SSD1305 |
| interfaz de señal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| rohs: | |
| solicitud | IA |
