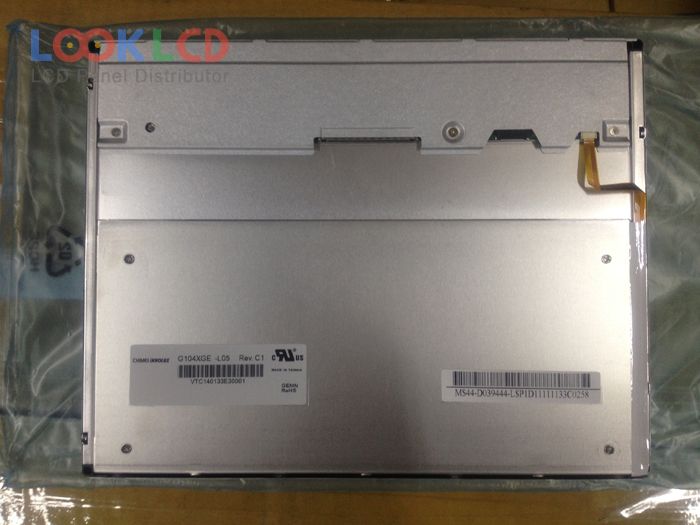

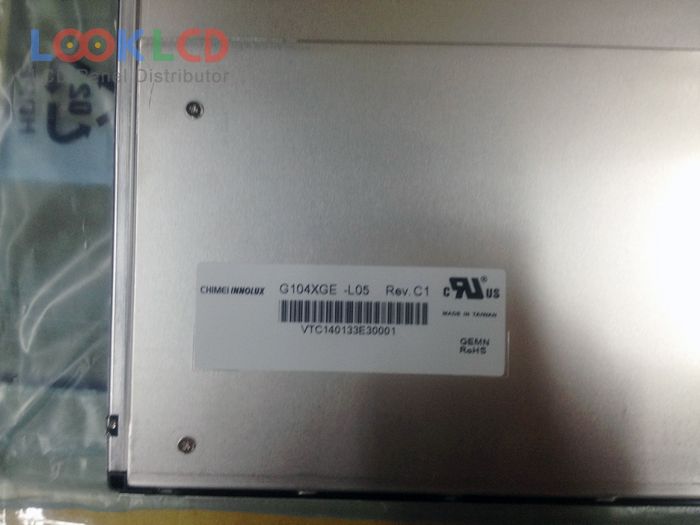

| Número de pieza | G104XGE-L05 |
| Marca | Innolux |
| Tamaño | 10.4 |
| Solicitud | IA |
| Resolución | 1024×768 |
| Composición | LCM |
| Brillo | 500 |
| CR | 1200:1 |
| Colores | 262K/16.2M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | CHIMEI INNOLUX |
| modelo de panel | G104XGE-L05 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.4 inch |
| resolución | 1024(RGB)×768 , XGA |
| modo de visualización | Super MVA, Normally Black, Transmissive |
| área activa | 210.4×157.8 mm |
| describir | 225.5×176.3×9.2 mm |
| superficie | Glare (Haze 0%), Hard coating (3H) |
| brillo | 500 cd/m² (Typ.) |
| relación de contraste | 1200:1 (Typ.) |
| mostrar colores | 262K/16.2M (6-bit / 6-bit + FRC), CIE193155% |
| tiempo de respuesta | 25 (Typ.)(Tr+Td) |
| ángulo de visión | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6/8-bit), 30 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | IA |
