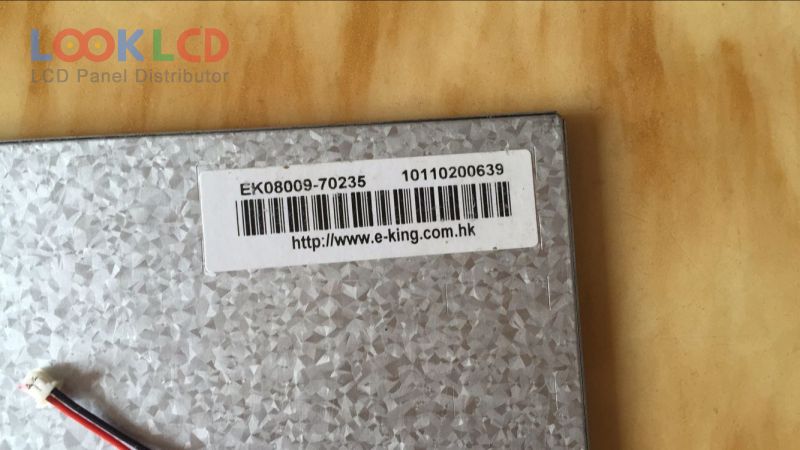

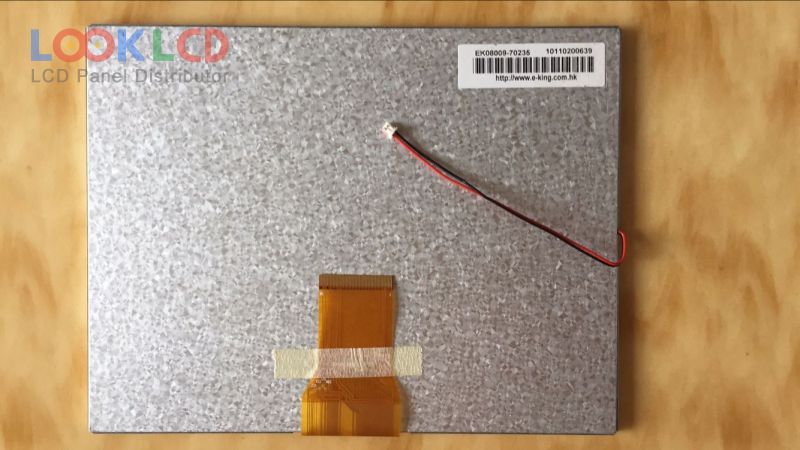

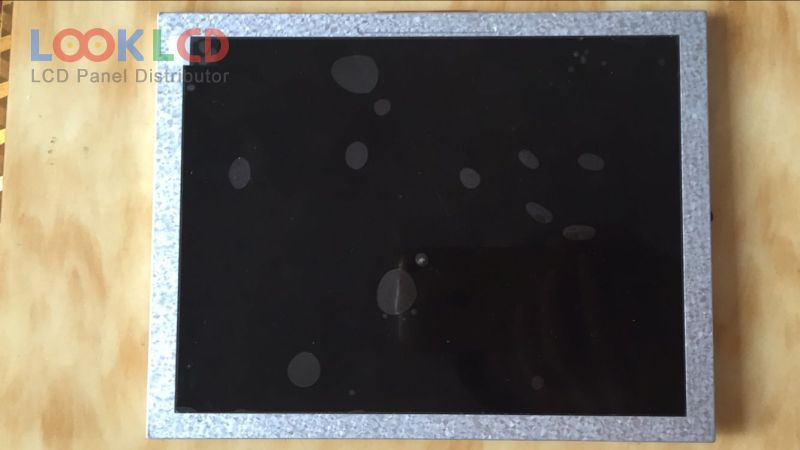

| Número de pieza | EK08009-70235 |
| Marca | Other |
| Tamaño | 8.0 |
| Solicitud | DPF |
| Resolución | 800×600 |
| Composición | LCM |
| Brillo | 250 |
| CR | 500:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | TTL |
| marca de paneles | No Brand |
| modelo de panel | EK08009-70235 4 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 8.0 inch |
| resolución | 800(RGB)×600 , SVGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 162×121.5 mm |
| describir | 183×141 mm |
| superficie | Antiglare |
| brillo | 250 cd/m² (Typ.) |
| relación de contraste | 500:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193150% |
| tiempo de respuesta | 10/15 (Typ.)(Tr/Td) |
| ángulo de visión | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 3S11PWLEDWithout Driver |
| interfaz de señal | Parallel RGB (1 ch, 8-bit), 50 pins |
| voltaje de entrada | 3.3/10.4V (Typ.)(VCC/AVDD) |
| rohs: | |
| solicitud | DPF |
