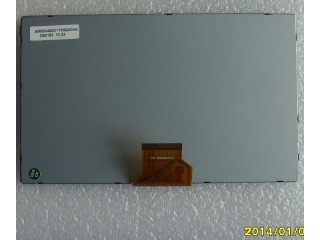

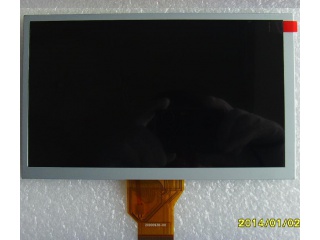

| Número de pieza | AM-800480D1TMQW-00H |
| Marca | AMPIRE |
| Tamaño | 8.0 |
| Solicitud | Industrial Automotiv |
| Resolución | 800×480 |
| Composición | a-Si TFT-LCD, LCM |
| Brillo | |
| CR | 500:1 |
| Colores | 262K/16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | |
| marca | AMPIRE |
| modelo | AM-800480D1TMQW-00H |
| tamaño diagonal | 8.0 inch |
| tipo | a-Si TFT-LCD, LCM |
| formato de píxel | 800(RGB)×480 [WVGA] 116PPI |
| configuración | RGB Vertical Stripe |
| área activa | 176.64(H)×99.36(V) mm |
| contorno tenue | 192.8(H)×116.9(V) ×6.7(D) mm |
| área del bisel | 180.1(H)×103.4(V) mm |
| tratamiento | Antiglare |
| luminancia | 450 cd/m² (Typ.) |
| relación de contraste | 500:1 (Typ.) (TM) |
| ver dirección | - |
| tiempo de respuesta | 10/15 (Typ.)(Tr/Td) |
| ángulo de visión | 70/70/50/70 (Typ.)(CR≥10) |
| modo operativo | TN, Normally White, Transmissive |
| color de soporte | 262K/16.7M |
| fuente de luz | WLED , 20K hours , W/O Driver |
| peso | 251g (Typ.) |
| diseñado para | Industrial Automotive Display |
| cuadros por segundo | 60Hz |
| panel táctil | Without |
| Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
