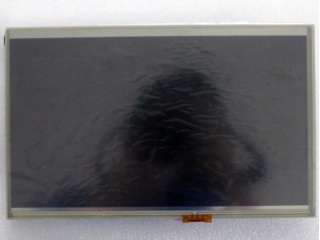

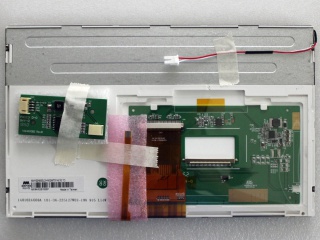

| Número de pieza | AM-1024600L2HMQW-T01H |
| Marca | AMPIRE |
| Tamaño | 10.1 |
| Solicitud | Industrial |
| Resolución | 1024×600 |
| Composición | a-Si TFT-LCD, LCM |
| Brillo | |
| CR | 500:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca | AMPIRE |
| modelo | AM-1024600L2HMQW-T01H |
| tamaño diagonal | 10.1 inch |
| tipo | a-Si TFT-LCD, LCM |
| formato de píxel | 1024(RGB)×600 [WSVGA] 117PPI |
| configuración | RGB Vertical Stripe |
| área activa | 222.72(H)×125.28(V) mm |
| contorno tenue | 235(H)×145.8(V) ×9.8(D) mm |
| área del bisel | 225.92(H)×128.48(V) mm |
| tratamiento | - |
| luminancia | 800 cd/m² (Typ.) |
| relación de contraste | 500:1 (Typ.) (TM) |
| ver dirección | - |
| tiempo de respuesta | 4/12 (Typ.)(Tr/Td) |
| ángulo de visión | 70/70/70/50 (Typ.)(CR≥10) |
| modo operativo | TN, Normally White, Transmissive |
| color de soporte | 262K 47% NTSC |
| fuente de luz | WLED [6S6P] , 50K hours , With LED Driver |
| peso | TBD |
| diseñado para | Industrial |
| cuadros por segundo | 60Hz |
| panel táctil | 4-wire Resistive Touch |
| Tipo de interfaz | LVDS (1 ch, 6-bit) , 30 pins Connector |
| fuente de alimentación | 3.3V (Typ.) |
| ambiente | Operating Temperature: -5 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
